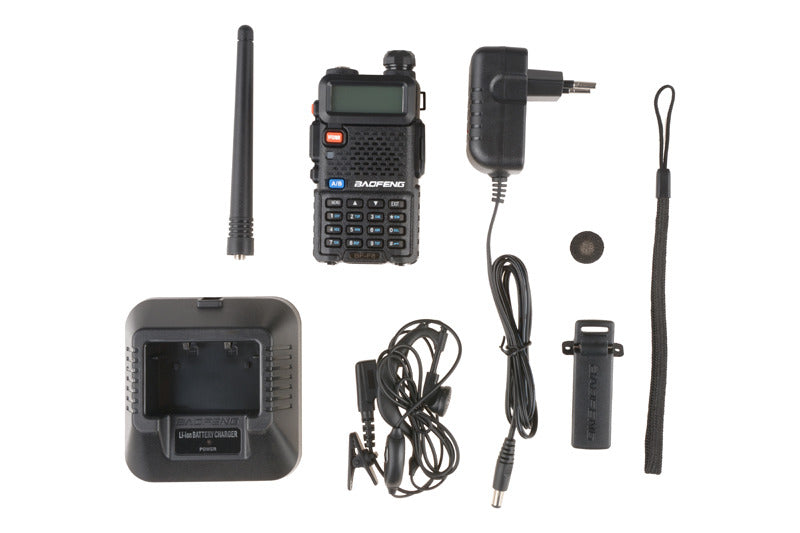

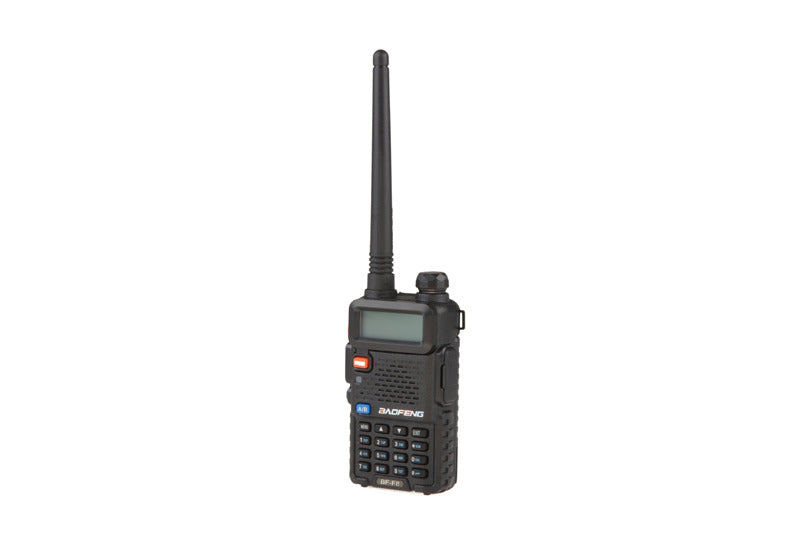

BAOFENG UV-5R DUAL-BAND RADIO
Main Features of UV-5R Talkie Walkie by Baofeng:
-Dual-band handheld transceiver with display function menu on the display "LCD".
- DTMF encoded.
- Commercial FM radio receiver (65 MHz ~ 108 MHz).
- Incorporates 105 codes "DCS" and 50 privacy codes "CTCSS" programmable.
- Function "VOX" (voice-operated transmission).
- Alarm function.
- Up to 128 memory channels.
- Broadband (Wide) / Narrowband (Narrow), selectable.
- High power / low power is selectable.
- Display illumination and programmable keyboard.
- Function "beep" on the keyboard.
- Dual Watch/dual reception.
- Selectable Frequency Step 2.5/5/6.25/10/12.5/25 kHz.
- Function "OFFSET" (frequency offset for repeater access).
- Battery saving function "SAVE".
- Timer transmission "TOT" programmable.
- Selecting the Scan Mode.
- Function Busy Channel Lock "BCLO".
- Built-in RX CTCSS/DCS scan
- Built-in LED flashlight.
- Programmable by PC.
- Level Threshold "Squelch" adjustable from 0 to 9.
-Crossband reception/transmission
-Tone end of the transmission
- Built-in key lock
PARAMETER :
GENERAL :
Memory channels Up to 128 channels
Frequency stability 2.5ppm.
Frequency step 2.5kHz/5kHz/6.25kHz/10kHz/12.5kHz/25kHz.
Antenna impedance 50Ω.
Operating temperature -20 ℃to +60℃.
Supply voltage Rechargeable Lithium-Ion mAh 7.4V/1800.
Consumption in reception 380mA
Consumption in transmission ≤1.4 A.
Mode of operation Simplex or semi-duplex.
Duty cycle 03/03/54 min. (Rx / Tx / Standby).
Dimensions 58mm x 110mm x 32mm
Weight 130 g (approximate).
Frequency step 2.5kHz/5kHz/6.25kHz/10kHz/12.5kHz/25kHz.
Antenna impedance 50Ω.
Operating temperature -20 ℃to +60℃.
Supply voltage Rechargeable Lithium-Ion mAh 7.4V/1800.
Consumption in reception 380mA
Consumption in transmission ≤1.4 A.
Mode of operation Simplex or semi-duplex.
Duty cycle 03/03/54 min. (Rx / Tx / Standby).
Dimensions 58mm x 110mm x 32mm
Weight 130 g (approximate).
TRANSMITTER :
PMR 446Mhz / LPD
Type of modulation FM.
Emission class 16KΦF3E/11KΦF3E (W/N).
Maximum deviation ≤±5 kHz/≤±2.5 kHz (W/N).
Spurious emissions <-60 dB.
Emission class 16KΦF3E/11KΦF3E (W/N).
Maximum deviation ≤±5 kHz/≤±2.5 kHz (W/N).
Spurious emissions <-60 dB.
RECEIVER :
Receiver sensitivity 0.2 μV(at 12 dB SINAD).
Intermodulation 60 dB.
Intermodulation 60 dB.
